The Real Deal on High-Power Halogen IR Heaters

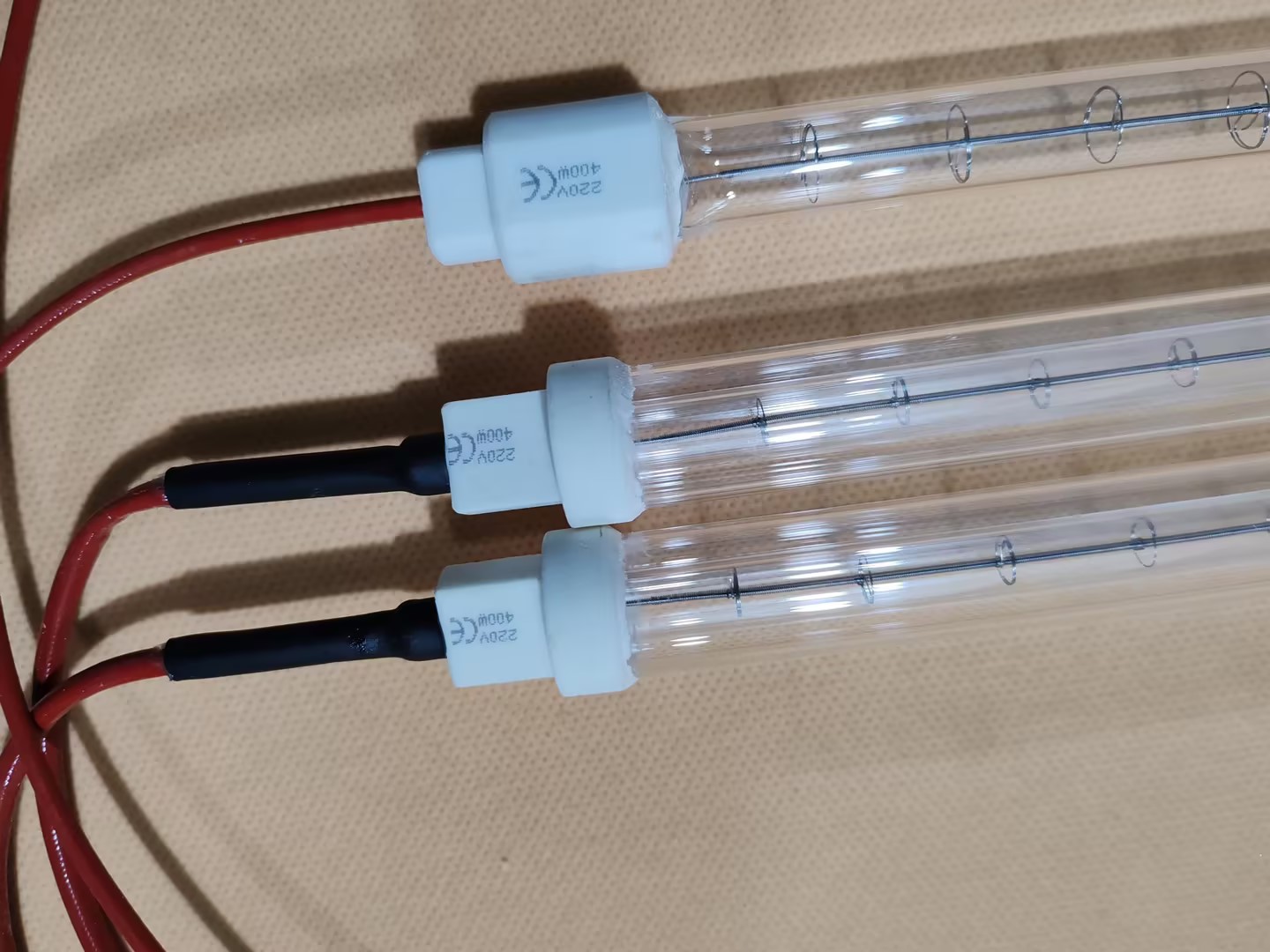

We build these lamps to do one thing: blast concentrated heat exactly where you need it. Inside that quartz tube, there’s a tungsten filament swimming in a halogen gas mix. Why the gas? Because it stops the filament from evaporating too quickly. It’s a simple bit of chemistry that lets the lamp run much hotter and last way longer than those old-school IR tubes. Talking Voltage and Power When you’re dealing with several kilowatts, you can’t just wing it. You need the voltage to match perfectly. Here’s a pro tip: if you go with a 400V system for a long tube instead of 230V, you drop the current draw. That means your wiring stays cooler. Nobody wants melting insulation in their factory. We also custom-cut the lengths to fit your specific machine footprint, so you get a nice, even heat across the whole surface. No cold spots. The Hardware Side of Things We use quartz glass because it doesn’t melt under pressure and lets shortwave IR pass right through. Sometimes we add a coating to tweak the heat spectrum or just to keep the tube safe. For the connections, we stick with R7s or Sk15. They’ve got a solid mechanical grip. When your machinery starts vibrating—which it will—you don’t want your power source rattling loose. These just slide right into most industrial oven arrays without a fuss. Where This Actually Works (And Where it Bites) You’ll see these everywhere in PET bottle blowing or when people are curing automotive paint. They hit the target temperature in seconds. It’s incredibly fast. But look, that kind of power is a double-edged sword. A 2500W tube puts out a massive amount of energy. If your cooling fans aren’t up to the task, you’ll end up baking your own control boards. It’s a mess. Also, keep your reflectors polished and clean. If they’re dusty, you’re basically throwing 30% of your energy into the machine frame instead of your product. And please, wire these into a PID controller. It stops the temperature from overshooting and saves your filaments from burning out prematurely.
